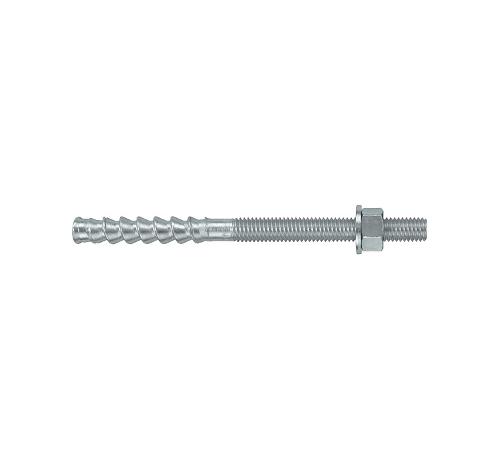

Ultimate-performance anchor rod for injectable hybrid anchors (carbon steel)

Features

• Very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
• No hole cleaning required (above 5°C / 41°F) with HIT-HY 200
• Increased productivity and safety by eliminating the hole cleaning process
• Variable depth of embedment for maximum design flexibility
• Head marking for easy verification of rod length, even after installation

Specifications

• Material, corrosion: Carbon steel, zinc-plated
• Wrench/nut size: 15/16 in
• Drill bit diameter: 3/4 in
• Base materials: Concrete (cracked), Concrete (uncracked)
• PROFIS Software: Yes
• Approvals / Test reports: ICC-ES report (concrete)
• Cleaning procedures: Non Cleaning
• Type of fixing: Pre-fastening, Through-fastening
• Product Class: Ultimate

12 pcs/ctn
